Spec Guide

Walls

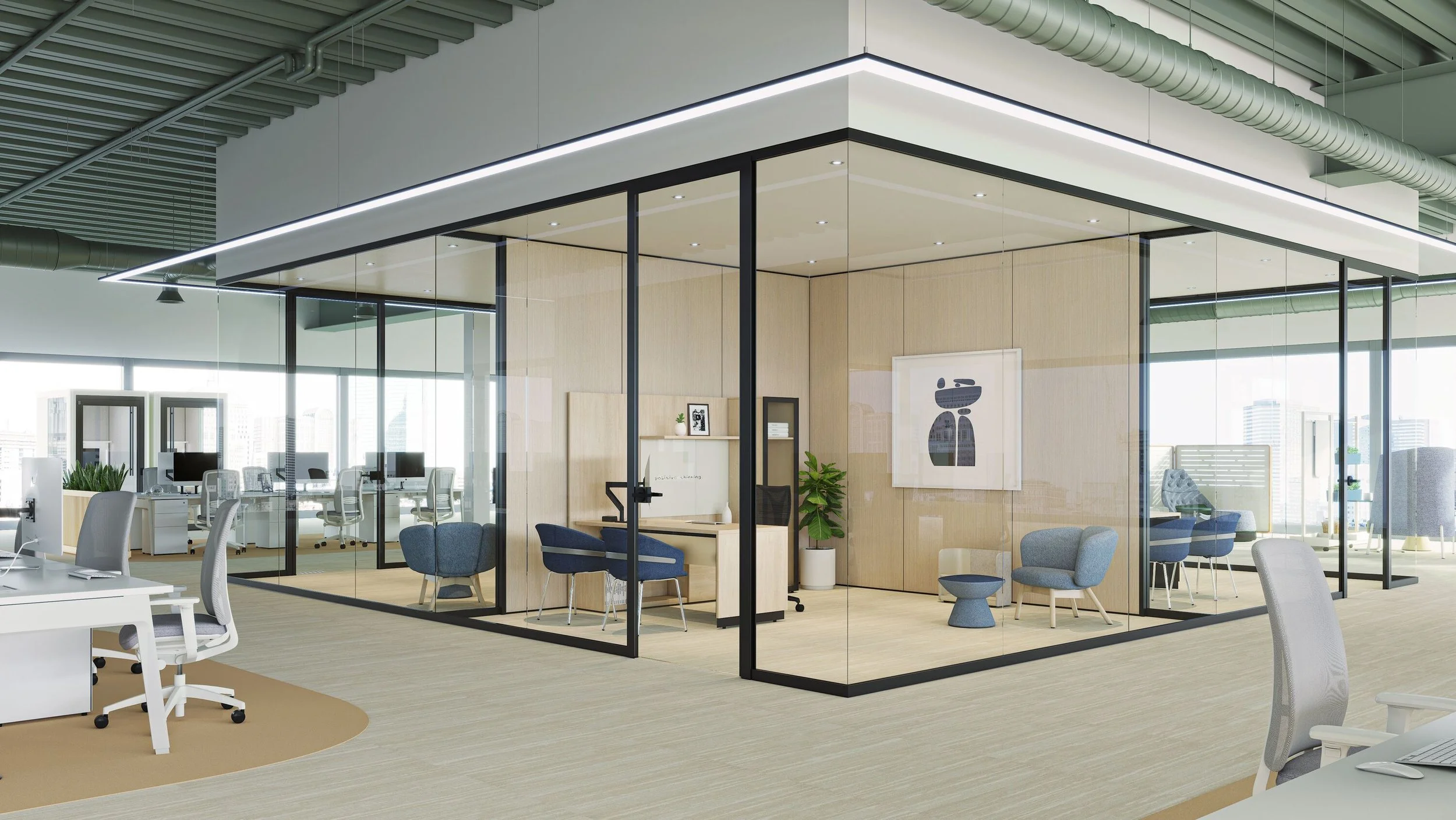

Tek Vue

Tek Vue is a glass office-front system that responds to the essential needs of today’s workplace. The system focuses on single-center glazing and thin-profile frames, while providing effortless integration with conventional construction and existing Teknion wall programs.

  • sizing

    • Ceiling heights from 86" - 120" high in 1/16" increments
    • Fascia widths 12"- 48" in 1/16" increments
    • Base and ceiling frame 1 3/8" thick by 2 3/8" nominal height
    • Horizontal frame cut to length on site up to lengths of 121"

    building accommodation

    • Ceiling adjustment range: + 3/4 ", - 3/4"
    • Floor adjustment range: + 1/2", - 1/4"
    • Wall start adjustment range: + 1/4", - 1/4" (min.)

    fascia offering

    • Single-centered glass only

    door offering

    • Universal Pivot and Barn door frames
    • Frameless, Framed and Solid Pivot door
    • Frameless Glass Barn door
    • Single Leaf only

    glass options

    • 10 and 12mm seamless glass
    • Tempered and Laminated
    • Clear and Low Iron finishes

    electrics

    • Low profile electrics program
    • Hard-wired

    integration

    • Drywall/base building
    • Altos, Focussizing

    • Ceiling heights from 86" - 120" high in 1/16" increments
    • Fascia widths 12"- 48" in 1/16" increments
    • Base and ceiling frame 1 3/8" thick by 2 3/8" nominal height
    • Horizontal frame cut to length on site up to lengths of 121"

    building accommodation

    • Ceiling adjustment range: + 3/4 ", - 3/4"
    • Floor adjustment range: + 1/2", - 1/4"
    • Wall start adjustment range: + 1/4", - 1/4" (min.)

    fascia offering

    • Single-centered glass only

    door offering

    • Universal Pivot and Barn door frames
    • Frameless, Framed and Solid Pivot door
    • Frameless Glass Barn door
    • Single Leaf only

    glass options

    • 10 and 12mm seamless glass
    • Tempered and Laminated
    • Clear and Low Iron finishes

    electrics

    • Low profile electrics program
    • Hard-wired

    integration

    • Drywall/base building
    • Altos, Focus

View Tek Vue

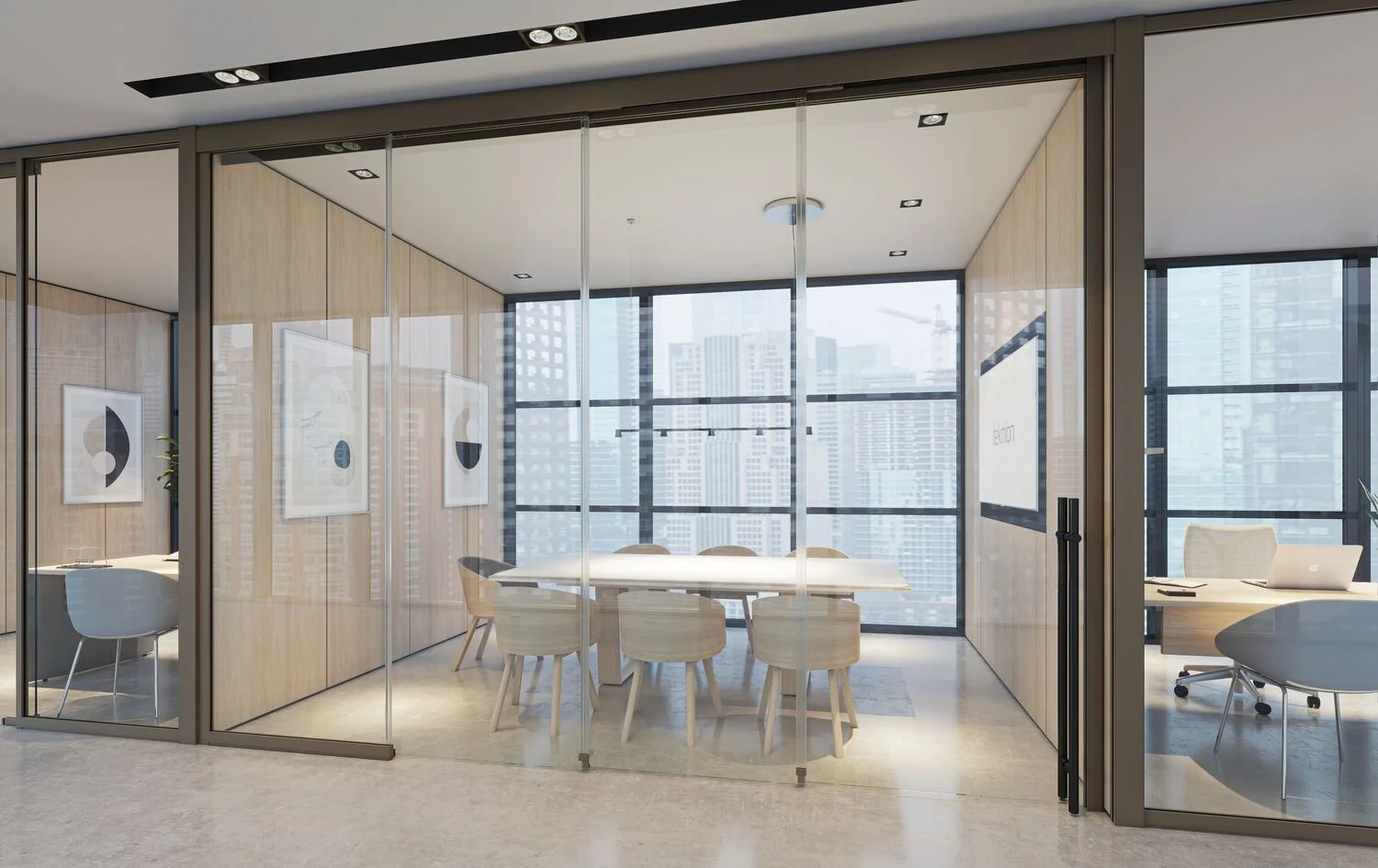

Telescope

Telescope is a versatile solution that easily adapts to different environments and creatively divides space with multiple sliding panels that move effortlessly and in a synchronized manner, fostering openness and collaboration.

  • Value through simplicity

    Telescope offers a cost-effective, dynamic and flexible approach to space division with frameless glass partition leaves.

    Smooth Functionality

    The synchronized mechanism of Telescope features a durable trolley and belt system, ensuring smooth and effortless opening and closing of the panels. Combining thoughtful design with refined engineering, the soft-close and soft-open functions are crafted to ensure easy operation of the multiple panels.

    Seamless Integration

    Telescope provides effortless integration with existing Teknion wall programs. Its handle program, consistent across all Teknion wall systems, ensures cohesive integration into any project. Additionally, Telescope is designed with handle accessibility and adjustability in mind. The Telescope system features significant adjustment capability to accommodate variations in the ceiling or floor, ensuring a perfect fit.

    Optimal Flexibility

    All wall and partition framing elements are cut on site from common lengths, allowing for flexibility in accommodating any on-site discrepancies.

View Telescope

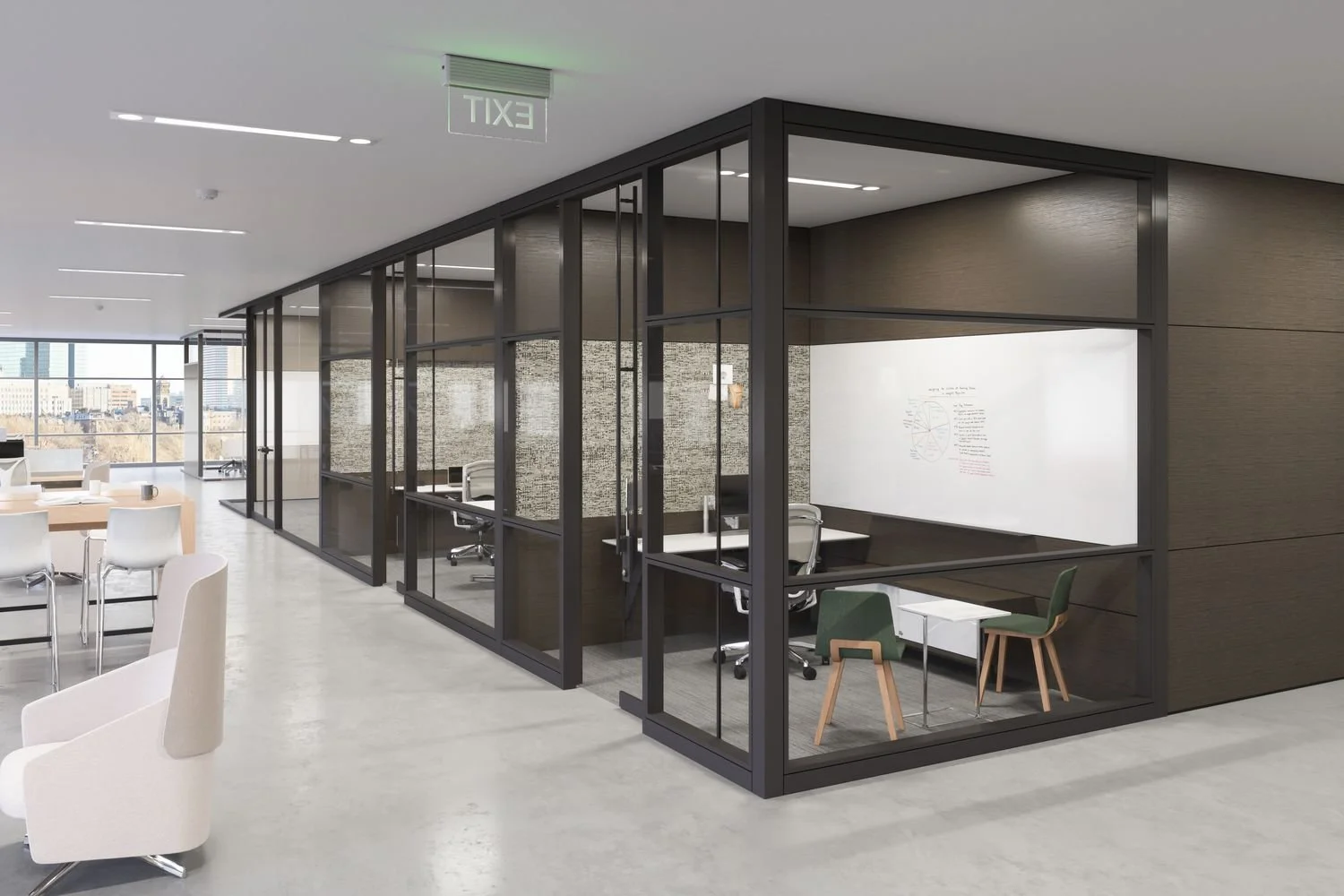

Altos

Altos is a complete modular wall system offered as a series of individual components, built on site to easily reconfigure and relocate between floors or buildings.

    • Fully reconfigurable

    • Exceptional acoustic performance range

    • Integrates with furniture and can carry a load

    • Integrates with smart fascias (whiteboard, tackboard)

    • Non Unitized

    • Non Progressive

    • Internal Steel Construction

    • Custom-built construction quality

    • Finish without use of multiple trades

    • Consistent fit and finish between materials and offices

    • Maximum Height:  12’-0” H*
      * 10’H standard with 2”transom, door height 10”H Max

    • STC:

      • Glass Walls: 31-46

      • Solid Walls: 32-52

      • Doors: 31-39

View Altos

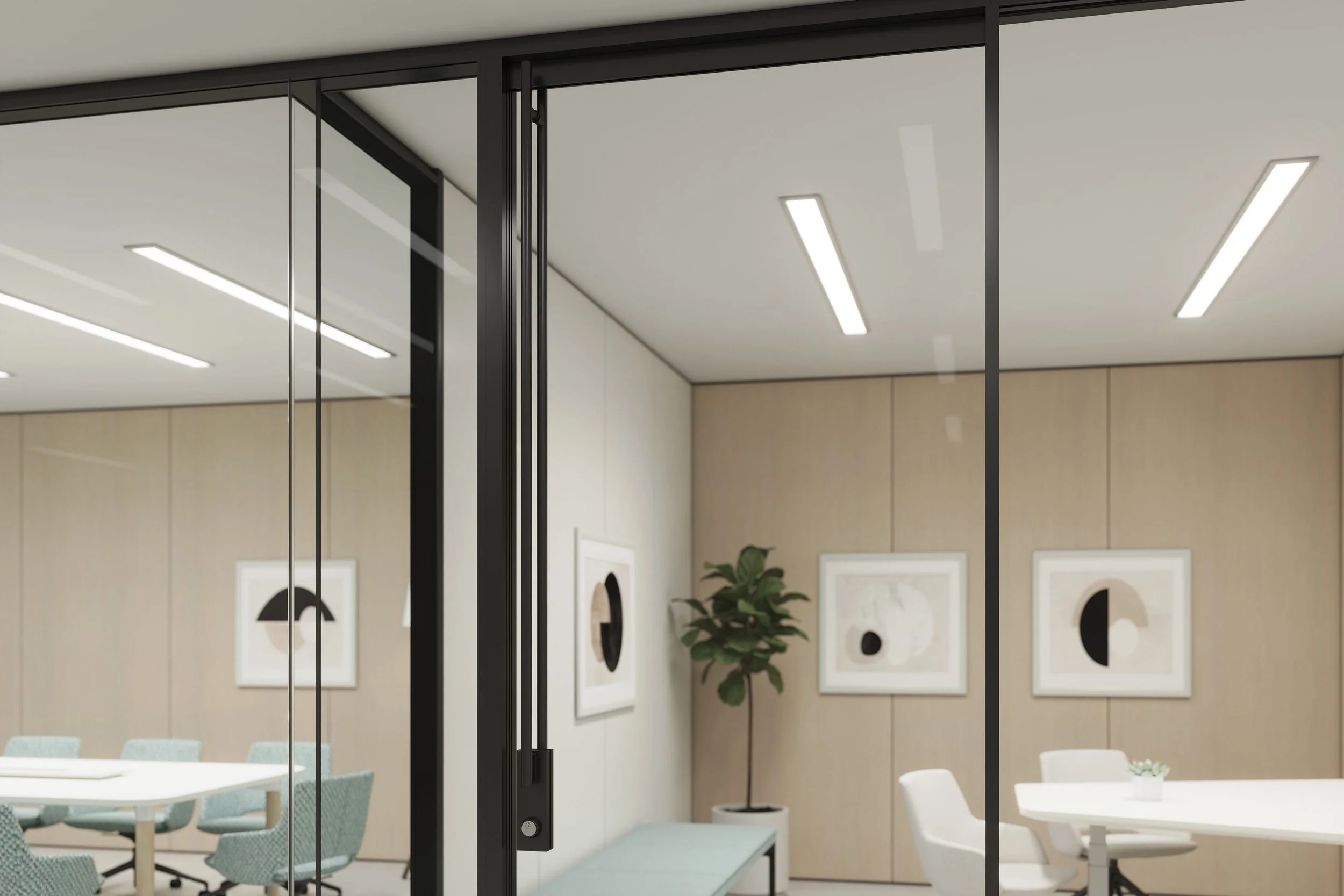

Focus

Focus is a demountable wall system that delivers a comprehensive range of acoustic performance with a clean, European aesthetic. It seamlessly integrates a variety of glass configurations to create effective, modern workspaces.

  • sizing

    • Ceiling heights from 84" - 120" in 1/16" increments
    • Fascia widths 12"- 48" in 1/16" increments
    • Factory-cut horizontal frames, 4" thick x 2" nominal height

    building accommodation

    • Ceiling adjustment range: + 7/16", - 3/8"
    • Floor adjustment range: + 11/16", - 5/32"
    • Wall Start adjustment range + 7/16", - 3/8"

    fascia offering

    • Single centered, single offset, double glass

    door offering

    • Center-mounted Sliding Door Leaf with infinite rail
    • Framed Pivot Door Leafs (Single and Double Glass)
    • Frameless and Solid Hinged Door Leafs

    acoustics

    • Glass STC ratings up to 45 STC
    • Door STC ratings up to 45 STC

    glass options

    • 10 and 12mm seamless glass
    • Tempered and Laminated
    • Clear, Low Iron and Frosted finishes

    grain & material direction

    • Laminate and Veneer
    • Vertical grain direction

    integration

    • Drywall/base building
    • Altos and Tek Vue

View Focus

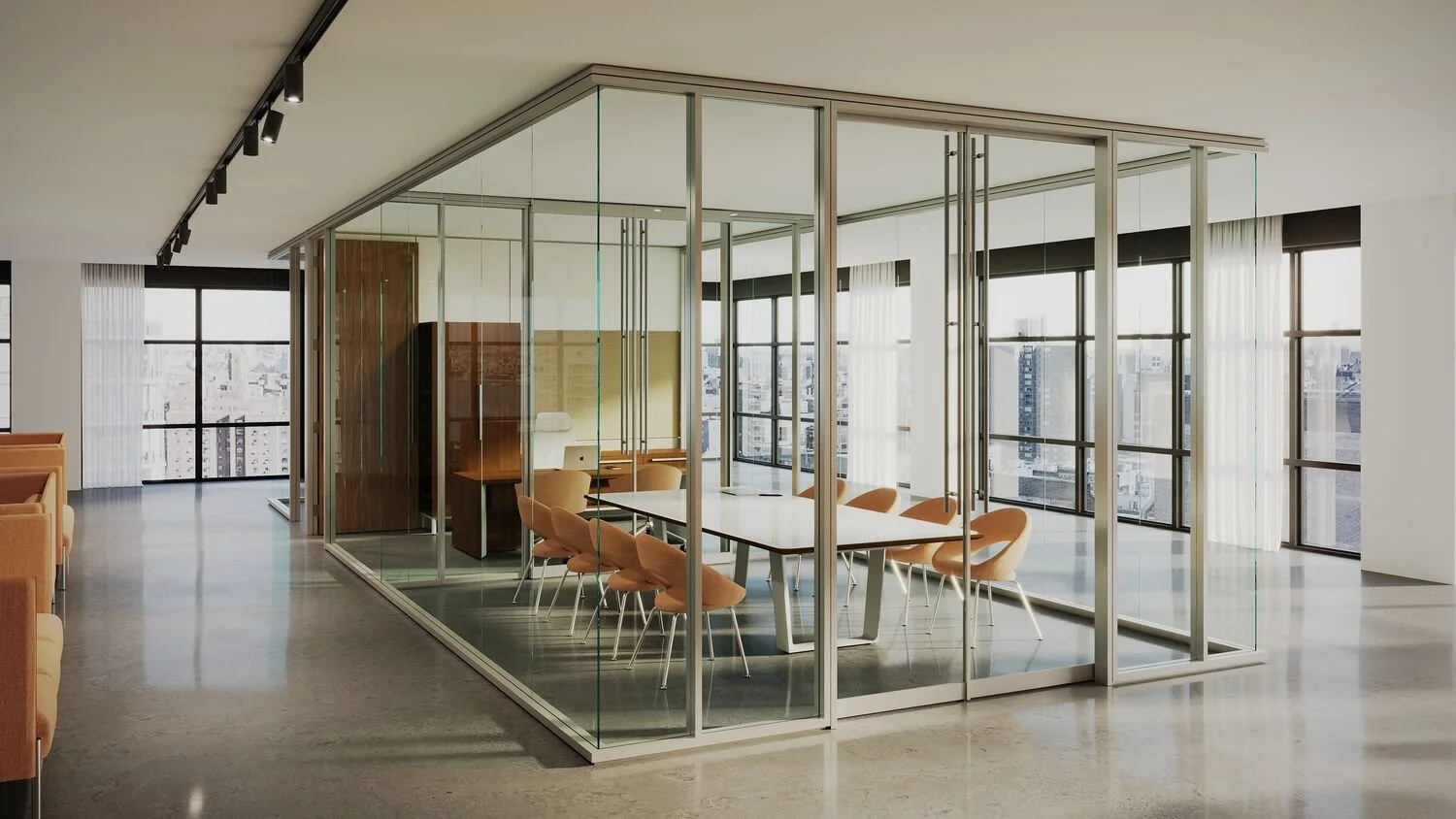

Optos

Optos is a glass storefront system featuring a rectilinear profile and minimal structure. It presents a refined, seamless look through a continuous run of glass.

  • sizing

    • Ceiling heights from 96" - 120" high in 1" increments
    • Horizontal frame cut to length on-site up to lengths of 120"

    building accommodation

    • Ceiling adjustment range: - 1/4" + 1/2"
    • Floor adjustment range: - 1/4", + 1 3/8 "
    • Wall start adjustment range: + 1/4", - 1/4" (min.)

    fascia offering

    • Single-centered glass only

    door offering

    • Hinged, Pivot & Barn doors
    • Single and double leaf options available
    • Common doors with Altos available

    acoustics

    • Glass STC ratings up 36 STC

    glass options

    • 10 and 12mm frameless glass
    • Tempered and Laminated
    • Clear and Frosted finishes

    integration

    • Drywall/base building
    • Altos

View Optos

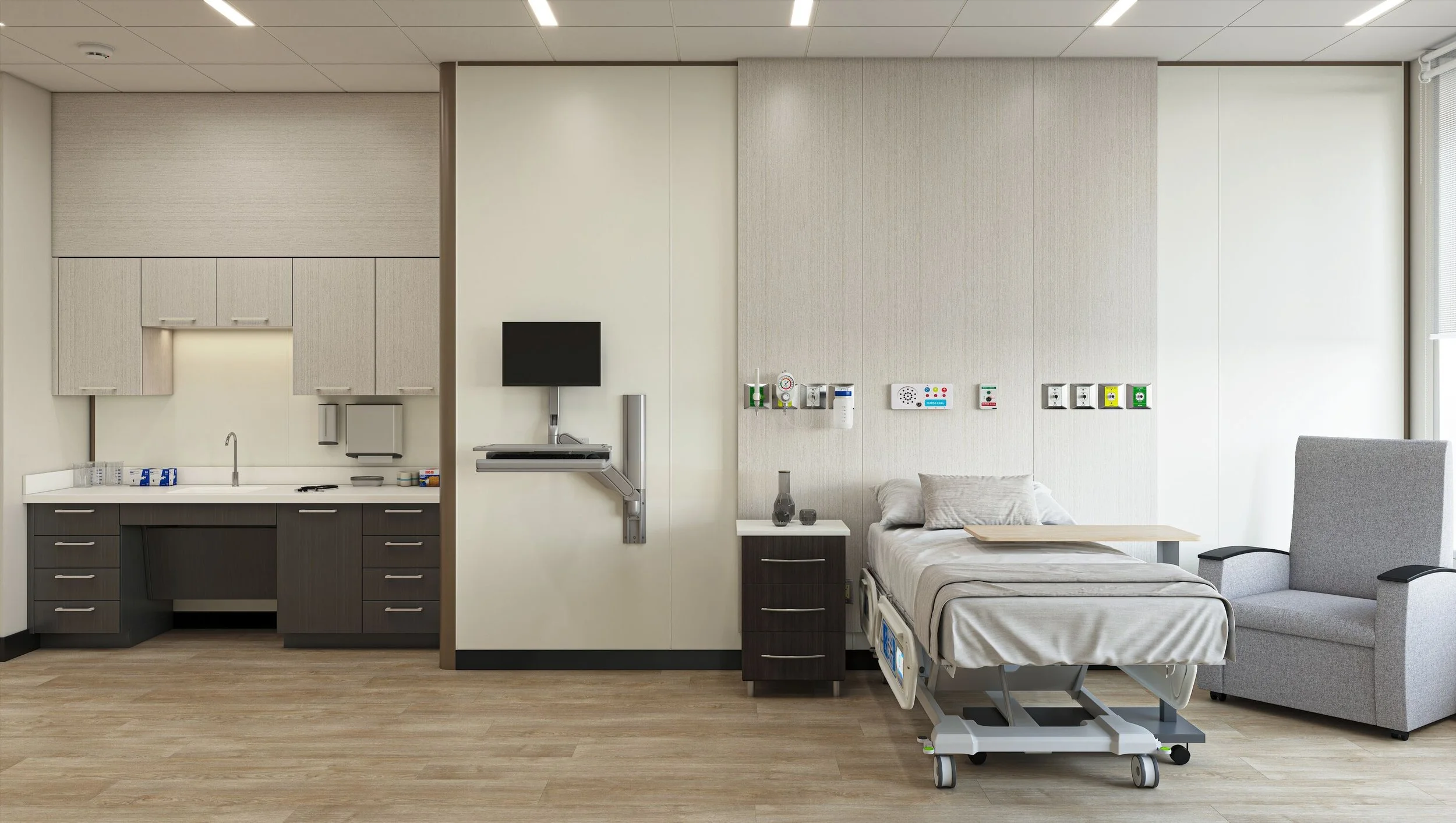

AI Healthcare

AI Healthcare is a demountable wall system that specifically responds to the challenges and severe demands in a healthcare setting. Offering an adaptive solution that maximize cleanability, durability, and flexible to the changing demand of modern healthcare facilities.

  • sizing

    Ceiling heights from 88" - 120" high in 1" increments
    Fascia widths from 12" - 48" wide in 1/8" increments

    building accommodation

    Ceiling adjustment range: + 1 3/4", - 1/4"
    Floor adjustment range: + 1 3/4", - 1/4"
    Wall adjustment range: + 1 3/4", + or - 3/8"

    fascia offering

    Solid HPL & LPL, and double glass fascias
    Compatible with select Teknion’s Architectural finishes program, all solid finishes are finished in PP edgebanding

    gaskets

    reveal, corner, ceiling and base gasket standard with a range of colour options, in non-PVC Healthcare friendly plastics

    door offering

    Solid hinged, and glass Pivot doors
    Single leaf only, ADA kick plate option, exterior and interior option available

    aluminum components

    all aluminum components of AI Healthcare is finished in durable anodized or powdercoated finishes

    acoustics

    Glass STC ratings up to 46 STC
    Solid STC ratings up to 48 STC

    modular cabinets collection

    Compatible with Teknion's Modular Cabinets catalogue

    glass options

    6mm double framed glass only
    Tempered and Laminated
    Clear and Frosted finishes

    electrics

    Power and Data capability
    Hard-Wired and Modular connections

    grain direction

    vertical grain direction

    integration

    Drywall/base building
    Altos transition

View AI Healthcare

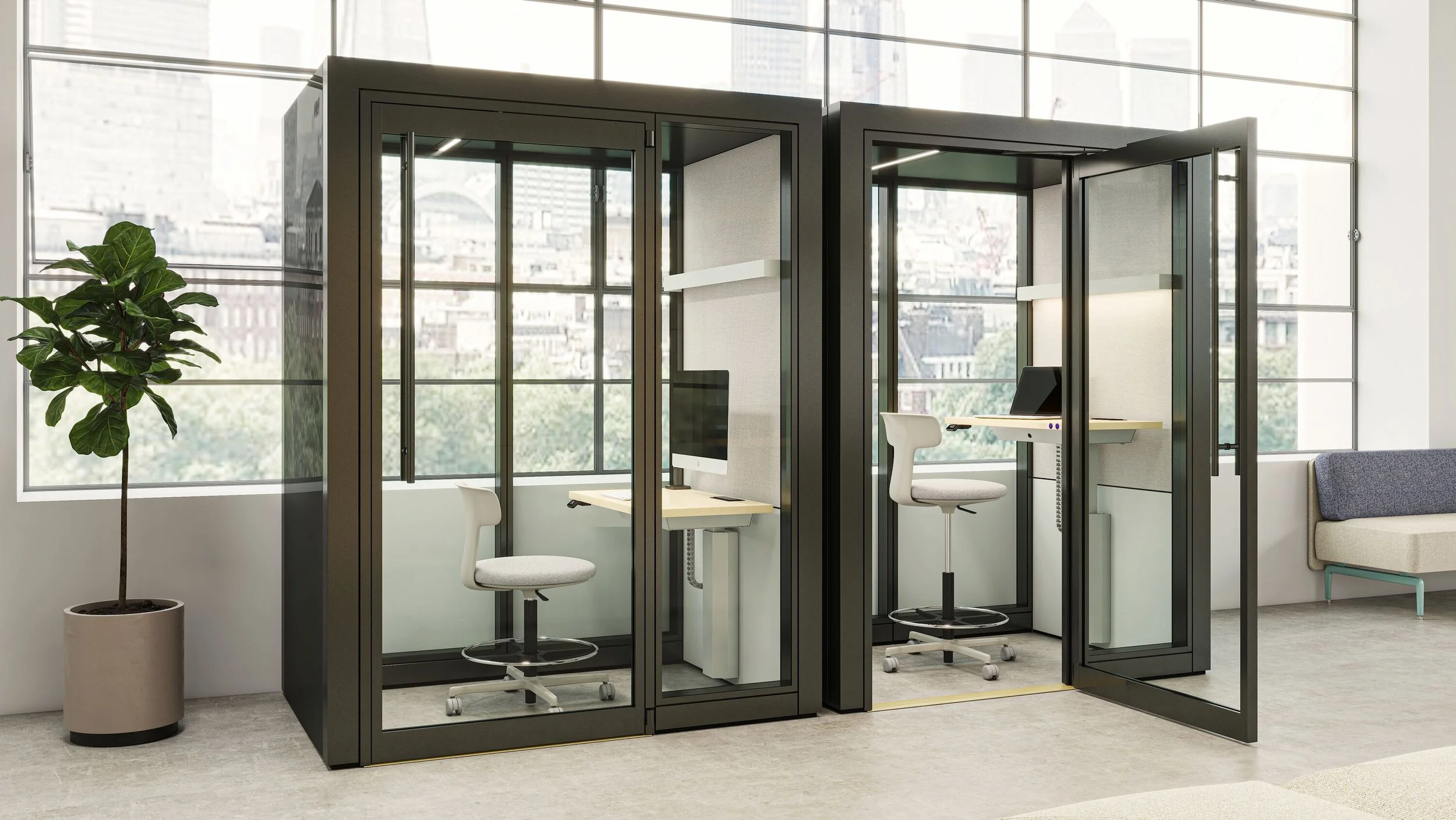

POD

POD (Privacy on Demand) is a family of products that are designed for occasional, short-duration privacy from the open plan. It supports technology and helps shape an environment where people want to work and where they feel comfortable and connected.

  • Privacy

    PODs are designed to support the individual and small groups when focus, privacy and comfort are needed from the open-plan environment. Hard external surfaces ensure sound isolation, while fabric and microperforated fascias on the interior minimize sound reflectivity.


    Fine-tuned Interior

    POD interiors fully integrates power, technology and ergonomics for an overall intuitive experience. Various worksurface options, power receptacles and a motion sensor that activates lights and ventilation fans, PODs are a space to feel comfortable and connected.

    Space efficiency

    A broad range of footprints allows for seamless integration into any environment. The different sizes can be easily multiplied on various floorplans, ensuring office productivity is fully optimized.

View POD

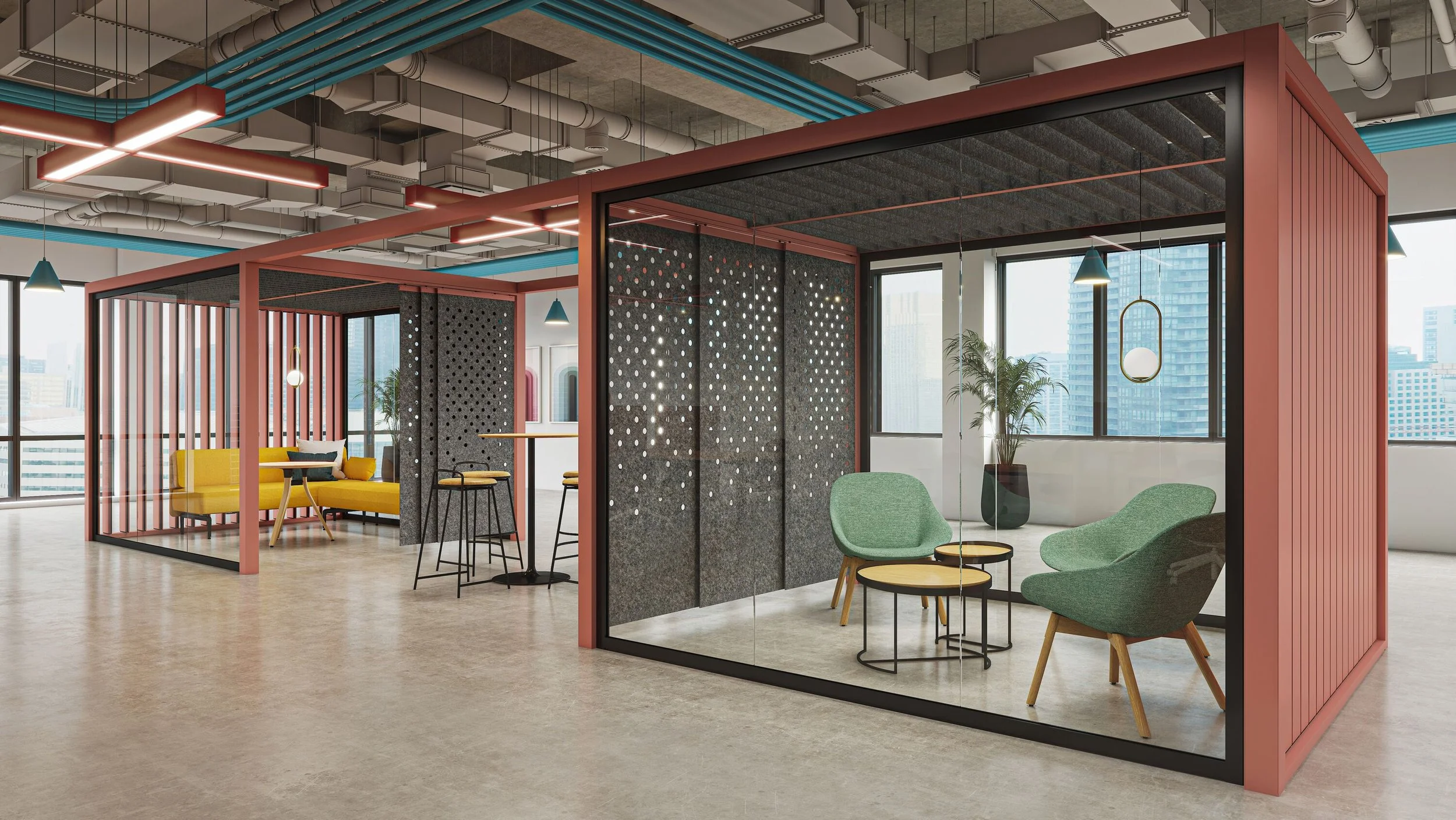

Within

Introducing Within, a new special capability from Teknion Architectural Interiors. Designed for a more adaptable and agile workplace, Within is a simple post-and-beam structure that defines an interior space.

  • Casual

    WithIn provides a self-supporting structure for spaces that allow people to gather and work together on an impromptu basis, reflecting today’s more relaxed and democratic work cultures. Striking a balance between privacy and transparency, WithIn projects an open and welcoming aspect, while its structural elements crisply define personal and group boundaries.

    Holistic

    WithIn accepts a wide range of infills materials which includes Portrait and Landscape orientations. WithIn has features such as Louvers and Baffles to enhance the privacy and acoustic. Additionally, products such as the Task Lights, Power Data outlets and Teknion’s Architectural Complements program can be added to support different ways of working. Further design choices are provided by the array of Teknion seating, worksurface and storage products, as well the range of LUUM textiles and Studio TK furniture.

    Autonomous

    Independent of building architecture, WithIn can be assembled and disassembled to allow for relocation and ensure an ultimate return on investment. At the same time, the open structure leverages existing HVAC, fire suppression and lighting systems to facilitate installation and reduce project costs—a valuable solution for smart workplace planning.

View Within
